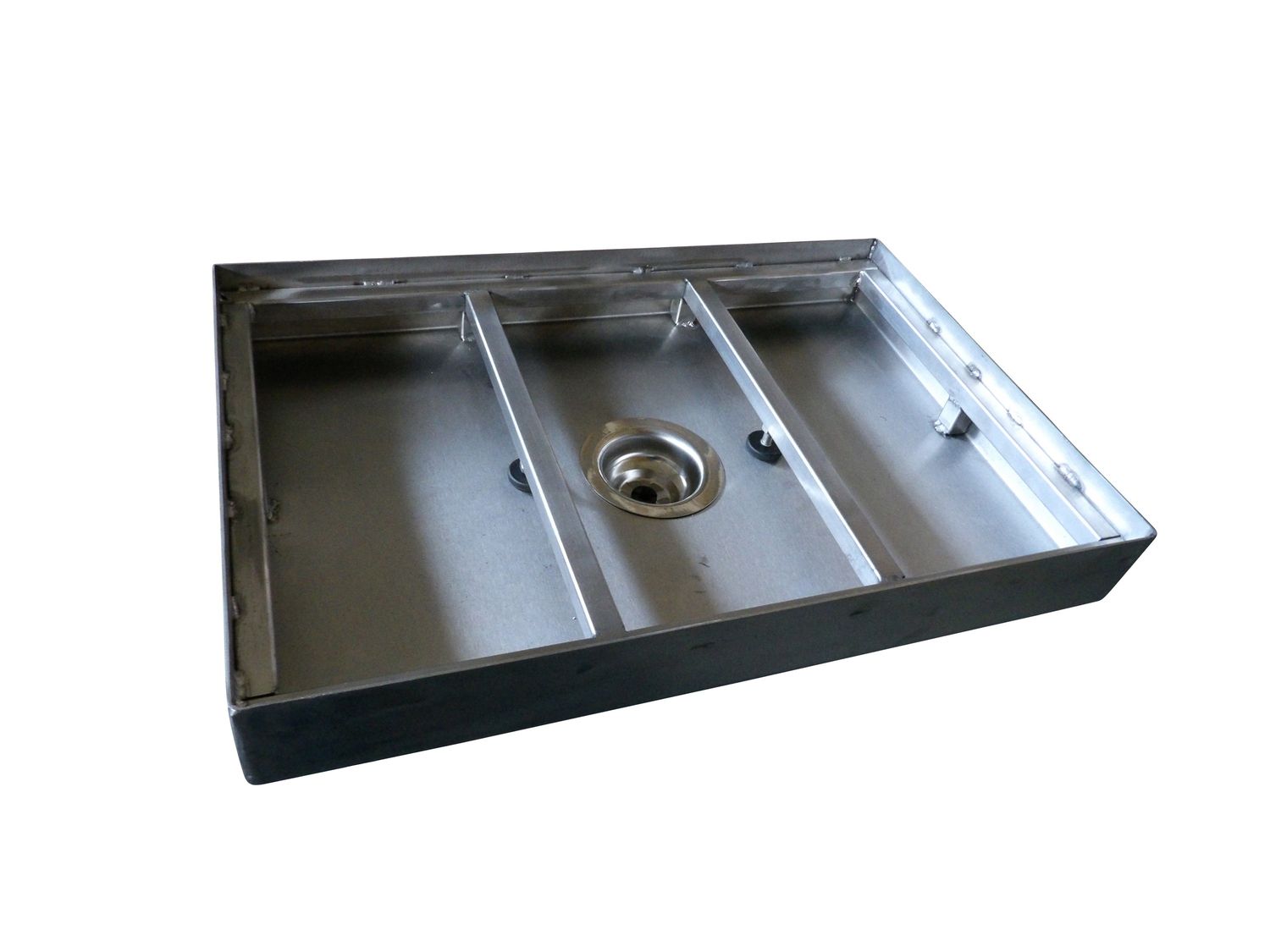

ACCESSORIES Stainless Steel Dirt Trap

Stainless steel dirt trap for entrance mats and gratings

For less maintenance under aluminum profile mats and the possibility of water drainage, you can install the stainless steel dirt trap as a substructure under aluminum profile mats. The stainless steel dirt trap is made to your exact measurements and can be used inside as well as outside buildings.

As an option, you can install a water drain with the stainless steel dirt trap.  With the stainless steel dirt trap you can choose at which position a water drain is installed. From the water drain, in turn, pipes must be planned for connection to the sewer system.

You can design large areas with the stainless steel dirt trap. We can produce the stainless steel dirt trap in almost any dimensions.

The stainless steel dirt trap has an installation height of 80 mm and square tubes (30x30x3 mm) are inserted at regular intervals of approx. 30 cm in the running direction for the purpose of secure support of the aluminum profile mats.



Installation of the stainless steel dirt trap for entrance mats and gratings

Normally you will receive the stainless steel dirt trap directly assembled.

Place the assembled stainless steel dirt trap in the recessed screed or floor covering. Make sure that the upper edge of the frame is flush with the floor covering. The bed on which the dirt trap rests should have been prepared beforehand and must be absolutely flat and even so that the stainless steel dirt trap rests properly.



Special features of the stainless steel dirt collector:

- The mat support bars in the tray are designed so that they do not obstruct the water drainage.

- Water drainage devices with sieve can be mounted at any point.

-Large areas are covered with several tubs.

- There are no limits to individual design possibilities with these tubs.
